Tv T Con Board Symptoms

Normally, people might have no picture but a backlight and sound, and swap out the tcon board, and everything's fine I'll probably try swapping mine out, but there's a few other symptoms mine has that I heard can be a tcon board, but I just wanted to double check The backlights come on and flicker from the moment I plug it in, unless I unplug the tcon from the mainboard, or the mainboard from the power board, in which case it stays solid.

Tv t con board symptoms. Ah, TCon board, I haven't seen one for a while, but I also haven't opened a TV for a while The TCon, as I was told, is part of the electronics which is involved in frame rate doubling and generally for driving the LCD Many TV chipset didn't/do. I have sony 40 inch led tv but that tvs t con board has damase can I use a 46inch tvs tcon 06/29/18 by Govinda Khatri Add a comment 0 /1024 Cancel Post comment Peace Emmanuel @lilbiggie Rep 1 Posted 08//18 Options Permalink;. Sharp 70" LED TV TCon Board, Main Board & Video Board $ $50 shipping Sharp LC70TQ15U TCon Board DUNTKG400FM07 G400FM07 with cables TestedVerified $00.

Looking for guidance on what component might need to be replaced such as the main board, power supply, TCon board, etc TV was not hit in any way that could have caused the damage Physical screen looks perfect and not damaged when the TV is off I also read horizontal lines are not usually the TCon board. The following guide will show you an example picture failure which could hint to a problem with the TCon board, and focus on the replacement of such board in a Samsung L7A659 TV It has been known to work with many other TV models. Oct 13, 17 LCD TV Repair Tutorial TCon Board Common Symptoms & Solutions How to Replace TCon Board ( Also See Google Search timing control board sony kdl 46vl160 ) ( Part number is AA ).

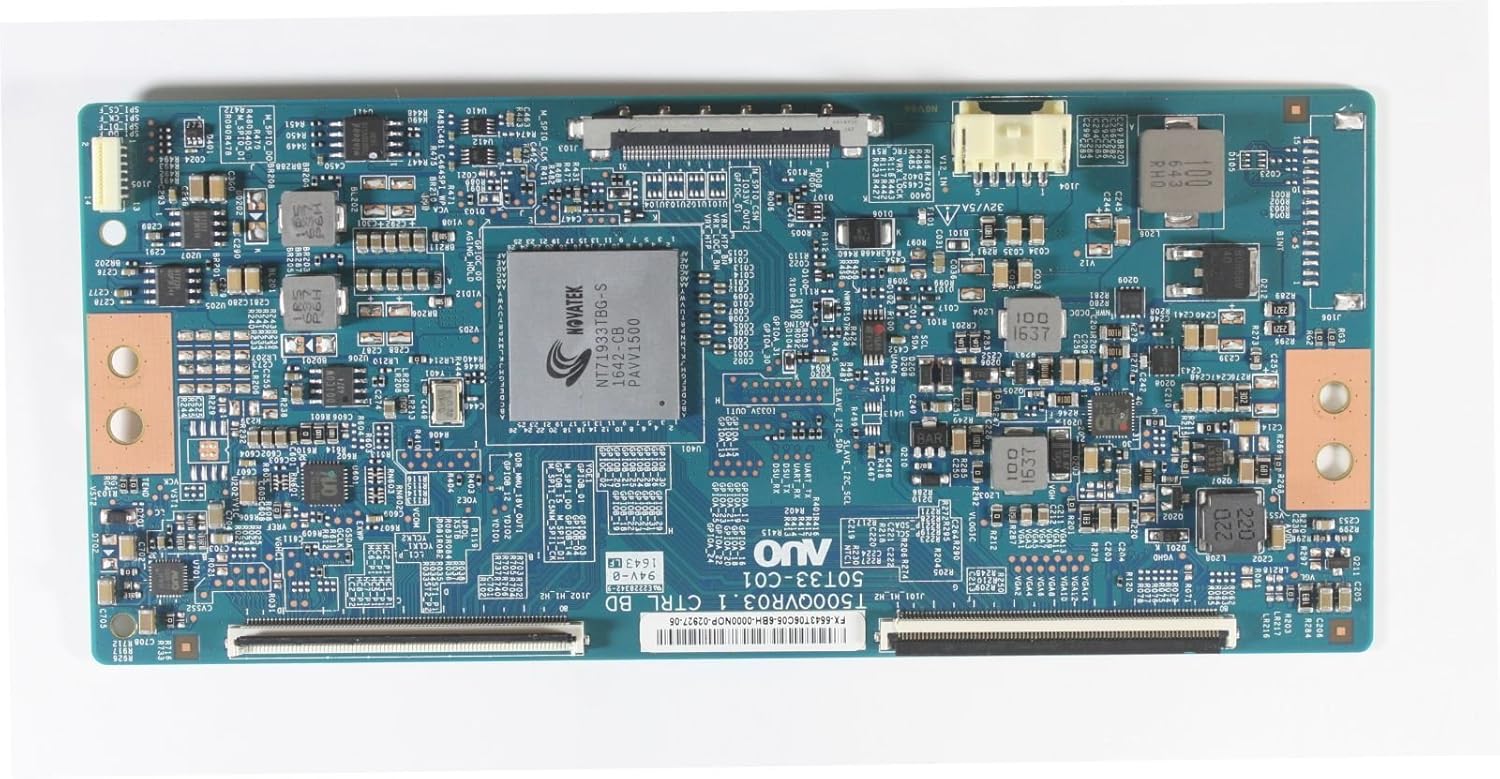

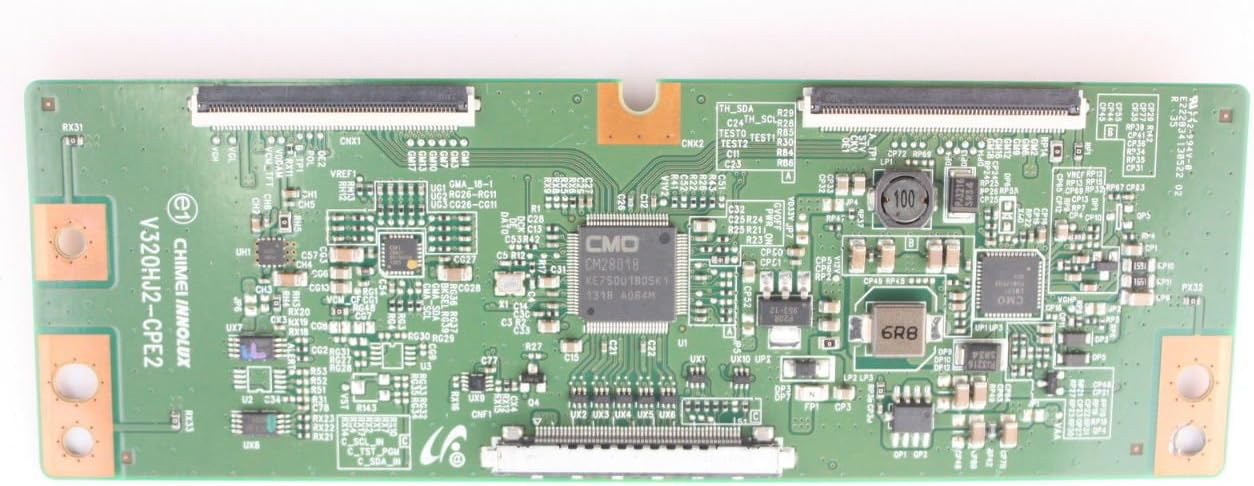

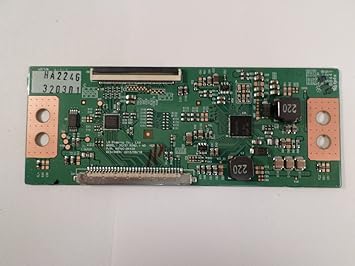

Collection of LG TCON Board Testing Points & Voltages Values (126 pages, 13MB) LG 12 Understanding TCON Troubleshooting & Training Guide (38 pages, 6MB) Collection of TCON Board Repairing Information (55 pages, 5MB) And More inside BonusB section!!!. Timing Controller Board (Tcon board) The TCon Board is the smallest board found inside LCD TV and is usually only found in LCD TV's The function of Tcon board is to control logic signal of gate and source for driving TFT LCD The TCon Board is sometimes referred to other names, such as "Controller Board," or "Control Board" A Typical T. Great deals on Sharp TV TCon Boards It's a great time to upgrade your home theater system with the largest selection at eBaycom Fast & Free shipping on many items!.

How to Replace faulty TCon board Take a screw driver and use it to unscrew the back side of the television Remove the TV cover Find the Tcon board It is usually located at the top or in the middle Disconnect all cables to TCon Board Remove the TCon board carefully Check the Barcode of the TCon board Note down the part number of it. Generally if you have half a picture or a very distorted picture (solarized for example) it will be the tcon where if you have a breaking up, freezing, severe pixelation on the entire screen or no picture or sound problem it will be the main soc chip on the main board. 33 Novacom Service 1) TV Model Number KDL46WL135 2) TV Failure Symptom Left side of screen has no picture (black) 3) Faulty Board TCon 4) Faulty Board Number LJH 5) Board Location Number Of Faulty Part(s) ICD7 6) Parts Failure Type Panel Power supply chip ICD7 no switching voltage at pins #4, #5 7) Shop Notes SMD diode DD14 was.

Buffer board symptoms don't always cause horizontal bars Check out this youtubers symptoms Plasma TV repair Don't make this mistake Another good one by Norcal715 Sanyo DP DP Wont Power On Norcal715 shows how to enter the service menu on a Samsung TV to change the panel data and solve the solarization problem. Troubleshooting No Picture problem When dealing with a suspected TCON problem, the very first thing you should approach is “Does the TCON board have it’s operational voltage” TV TURN ON PROCESS When the TV turns on, it is a 3 step process. You cant "test" the TCON board if it has a faulty component on it has to be determined by swopping the board, their is no test procedure which is why I am asking questions to the fault, if by swopping the board the fault clears then you know the board is indeed faulty or not, flat tv technology in the main is a board swopping exercise with no checks or tests other then using the menu as a.

Actually most of their timing control/tcon problem can be solved But you MUST know these first 1) Knowledge/repair information on How Tcon Board/Timing Control work and how to troubleshoot it 2) Tools to Repair it 3) Spare Parts Some TV repairer said that “normally I just buy the Tcon board to replace it and it is fast and easy to repair. If your TV has Lines across the screen and the screen is not cracked, consider replacing the TCon Board Do further troubleshooting before replacing any circuit boards NOTE When troubleshooting a TV, remember to unplug the TV from power for approximately 2 hours before you begin to dissasemble the TV. TCON board full explain in detail Tcon board full informationAbout this VideoIn this video I'm telling about LCD Lev TV's tcon board That is how to work.

Troubleshooting No Picture problem When dealing with a suspected TCON problem, the very first thing you should approach is “Does the TCON board have it’s operational voltage” TV TURN ON PROCESS When the TV turns on, it is a 3 step process. 1) Tcon Board V260B1C01 LCD Panel Model 26 inches Panel Note Vcc input= 5V 1) U3= CM1671 If this IC abnormal, the TV will No Display 2) U5= HX04 is a quad operational amplifiers and it is used to buffer reference voltages for GAMMA Correction in a Tcon board 3) U8 is a LDO IC If this IC abnormal, the TV will No Display. The problem now is that my customer need this TV back urgently and I got no choice other than to buy a new Tcon board from Ebay and fixed itsee the photo below Once the new board is replaced, the problem was gone and this had proved it was indeed the Tcon board was the main culprit.

Area of the screen Failures on this board usually appear as distortions, color level shifts, video level shifts, noise that involves the entire picture, or no picture at all The TCON can generate symptoms that appear to be video process related but the video process circuits cannot produce the symptoms of a failed TCON circuit. Common tcon board problems for LED TV Repair Review No Image on screenClick Here to BUY TV REPAIR PARTS http//bitly/ShopJimmyTVBefore you begin your re. LCD TV Repair Tutorial TCon Board Common Symptoms & Solutions How to Replace TCon Board.

Failure of the main board or video circuit normally appear noisy or distortion of colours across the whole screen Most likely the Tcon board BNA (V315B1) is creating the problem It cost around US$60 including postage which is on the high side considering the age of this model. Received this TV knowing it was broken, looked up possible fixes and I believe what we have is a bad tcon board?. If the board attatched to the mainboard is the tuner board then I have not replaced that one yet I have sound fine through all sources, backlight is fine Mainboard and tcon cable are fine Power board is inconclusive (read update) So really just the tuner board to check as there is no tcon board in this set.

The TCon board in this model lasts about 23 years I have been the owner of 6 Samsung TVs and will never buy one again It is a bad design that causes these boards to overheat and die yet. Collection of LG TCON Board Testing Points & Voltages Values (126 pages, 13MB) LG 12 Understanding TCON Troubleshooting & Training Guide (38 pages, 6MB) Collection of TCON Board Repairing Information (55 pages, 5MB) And More inside BonusB section!!!. Common tcon board problems for LCD TV Repair ReviewCLICK HERE for Your Replacement TCon Board http//wwwshopjimmycom/tvs/tvtconboardsThis video is de.

Area of the screen Failures on this board usually appear as distortions, color level shifts, video level shifts, noise that involves the entire picture, or no picture at all The TCON can generate symptoms that appear to be video process related but the video process circuits cannot produce the symptoms of a failed TCON circuit. Area of the screen Failures on this board usually appear as distortions, color level shifts, video level shifts, noise that involves the entire picture, or no picture at all The TCON can generate symptoms that appear to be video process related but the video process circuits cannot produce the symptoms of a failed TCON circuit. 1) Tcon Board V260B1C01 LCD Panel Model 26 inches Panel Note Vcc input= 5V 1) U3= CM1671 If this IC abnormal, the TV will No Display 2) U5= HX04 is a quad operational amplifiers and it is used to buffer reference voltages for GAMMA Correction in a Tcon board 3) U8 is a LDO IC If this IC abnormal, the TV will No Display.

The Cause One or more microchips on the main board has failed, which causes the specified problems to occur Possible Solutions As with many problems, there is more than one way to fix a failed Samsung TV Main Board Really though, they boil down to two options repair or replace Samsung TV Main. Samsung TV Stops or Freezes at Welcome Screen;. Some arrive here wanting a TV tech to diagnose the set So far that hasn't happened I will nod to it's unlikely to be the TCON board The symptom doesn't match what I've seen so far and the web.

Akai LCT3701AD TCon Board 2370WH02C01A (370WA02C1A) Contact Andrew tel ext1 or eMail 60 DAYS UNCONDITIONAL HASSLEFREE MONEY BACK GUARANTEE FOR ANY REASON!. LCD TV Repair Tutorial TCon Board Common Symptoms & Solutions How to Replace TCon Board. The problem now is that my customer need this TV back urgently and I got no choice other than to buy a new Tcon board from Ebay and fixed itsee the photo below Once the new board is replaced, the problem was gone and this had proved it was indeed the Tcon board was the main culprit.

Superior Replacement TCon Boards ElectroParts carries replacement TCon boards at ideal prices Abbreviated for “Timing Controller,” TCon boards sync the specific timing between a video signal and a panel We offer a 180day warranty on all products and also cover all shipping costs for returns and exchanges. Actually most of their timing control/tcon problem can be solved But you MUST know these first 1) Knowledge/repair information on How Tcon Board/Timing Control work and how to troubleshoot it 2) Tools to Repair it 3) Spare Parts Some TV repairer said that “normally I just buy the Tcon board to replace it and it is fast and easy to repair. Alibabacom offers a wide variety of universal and led tv t con board sold by certified suppliers, manufacturers and wholesalers.

"Here is a preview of some pages from the LED/LCD TV TCON & Panel Repair Guide ebook!". Common tcon board problems for LCD TV Repair Review\rCLICK HERE for Your Replacement TCon Board \r\r\rThis video is designed to be a guide for testing and troubleshooting your TV repair Please note that other complications may exist that arent addressed in this guide While we always strive to provide accurate and detailed information, we cant guarantee that it will fix your TVs issues \r. SAMSUNG TV Model UN40EH5000FXZA TCon Board Part Number DUNTK5246TPZZ $2295 $ 22 95 $641 shipping Only 19 left in stock order soon More Buying Choices $794 (3 used & new offers) tcon Board for Samsung UNWFXZA LN46B650T1FXZA FRC_TCON_CMO_80PIN V460H1 4592 $1499 $ 14 99 $609 shipping Only 11 left in stock order soon.

The following guide will show you an example picture failure which could hint to a problem with the TCon board, and focus on the replacement of such board in a Samsung L7A659 TV It has been known to work with many other TV models. 1) Tcon Board V260B1C01 LCD Panel Model 26 inches Panel Note Vcc input= 5V 1) U3= CM1671 If this IC abnormal, the TV will No Display 2) U5= HX04 is a quad operational amplifiers and it is used to buffer reference voltages for GAMMA Correction in a Tcon board 3) U8 is a LDO IC If this IC abnormal, the TV will No Display. History %#*@, just this evening my LG LED TV turned black screen The sound goes on but the screen is.

Aug 28, 19 Common tcon board problems for LCD TV Repair ReviewCLICK HERE for Your Replacement TCon Board http//wwwshopjimmycom/tvs/tvtconboardsThis video. With TCL TV's biggest issue TCon boards However if you're computer savvy don't buy another TV, if your backlight works, just buy the TCon board (if its a picture issue), if it's a power issue you may need a Power supply, but to change the entire setyou can buy all three boards for less that $60 in most cases. SAMSUNG 40" UN40EH5000 HG40NA570L BNB LED LCD TCon Control Timing Board 50 out of 5 stars 1 Tcon Board for Samsung BNB BNA S128CM4C4LV04 46" TV UN46D6300S.

Before ordering one, just wanted some opinions on what you all think it could be. LCD TV Troubleshooting The defective LCD TV may have the following common symptoms Symptom No picture on screen but LCD TV still has sound Solutions The problem is cause by defective inverter Replacing ivnerter will solve hte problem. Diagnosing and Fixing Your LCD, LED or Plasma TV An accurate diagnosis is the first step in fixing your TV Once you figure out what's wrong with your TV, you can narrow down the defective part(s) that's causing your TV's symptoms A quick Google search of your TV model number will help you figure out if your TV is an LCD, LED or Plasma model.
