Nk 15 engine. That's a pretty wide open question, so how about a quick lesson on the two primary types of fuel The space shuttle used both Rockets are propelled by expelling their burnt fuel at a very high speed The two primary types of fuel are solid and. (Under the designation of NK15, and NK15V for the high altitude version) This design was a direct result of a blazing row between the Chief Designer, (Sergey Korolev), and the best rocket engine designer, Valentin Glushko Glushko wanted to use propellants which Korolov considered far too dangerous. The first launch of the N1 ended in a disaster killing several hundred people as can be seen below The N1 1st stage had 30 NK15 engines mounted around its circumference The engines did not fail, but the fuel pumping/transfer and injection systems did fail causing the explosion.

They consider the 4 thrust chambers and 1 pump to be one rocket engine system, not 4 In the case of the N1, the NK15 engines were built by the Kuznetsov design bureau, because the ‘primary’ rocket engine design bureau (Glushko and company) didn’t get along with Korolev The Kuznetsov Bureau’s job was aircraft engines, not rockets. The design was developed by Kuznetsov into the NK15 and NK33 engines in the 1960s, and claimed them to be the highestperformance rocket engines ever built, which were to propel the N1 lunar rocket —one that was never successfully launched. It was powered by 30 NK15 engines arranged in two rings the main ring of 24 at the outer edge of the booster and the core propulsion system of inner 6 engines The engines were the first ever staged combustion cycle engines The control system was primarily based on differential throttling of the engines of the outer ring for pitch and yaw.

N1 base showing the 30 NK15 engines Note the people in the background for the massive scale The only bit of the N1 program to survive was the NK33 engine, which have been tested for use. The NK33 is a venerable engine that was used on the soviet N1 moon rocket under the name NK15 and is used in an Aerojetrefurbished version on the Orbital Sciences Antares launcher first stage. The N1 also didn’t feature gimbal control The NK15 engines had to throttle for all attitude control which made the N1 far more complex in terms of avionics.

The oxygenrich technology lives on in the RD170/171 engines, their RD180, and recently developed RD191 derivatives, but these engines have no direct connection to the NK33 History N1 The N1 launcher originally used NK15 engines for its first stage and a highaltitude modification (NK15V) in its second stage. The NK15 engine was designed and developed under the direction of Sergei Korolev Chief Designer for RKK Energiya (and following his death in 1966, by Vasily Mishin). The engines NK15 were developed by the Kuznetsov Design Bureau The engines could not be gimballed to steer the vehicle Instead, the motors were selectively throttled to achieve the correct trajectory The 30 main engines (4 drive engines) have a thrust of 154 tons each and burning 150 seconds.

In 1959 With The NK9 Engine •Initiated NK15 Development In 1963 •NK33 Development Completed In 1972 • All Engines Use Oxrich Staged Combustion Cycle With LOX/Kerosene Propellants • First Stage – 30 NK15/33 – 154 Metric Tons (339,500 Lbf) – 331 Seconds (2771 Ar) • Second Stage – 8 NK15V/43 – 179 Metric Tons (394,600 Lbf). The N1 1st stage had 30 NK15 engines mounted around its circumference The engines did not fail, but the fuel pumping/transfer and injection systems did fail causing the explosion. Cut with side face;.

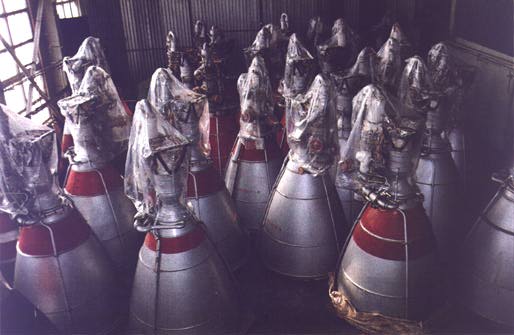

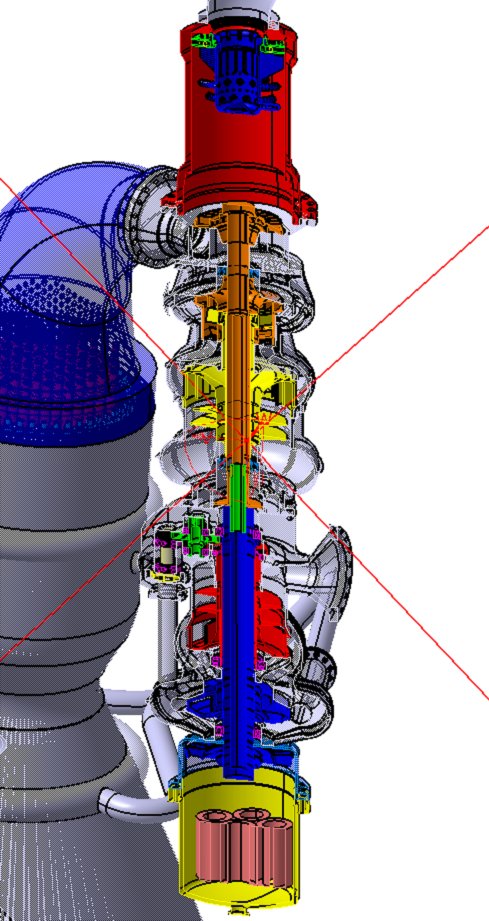

The N1/L3 had five stages (BLOKs) as well as the Lunar Orbital Ship (LOK) and the Lunar Ship (LK) BLOKA featured an outer ring of 24 NK15 engines with a central cluster of a further 6, giving the stage an extremely wide radius Huge spherical propellant tanks were used and a massive network of associated plumbing fed the 30 engines. The NK33 and NK43 rocket engines are the highest performing Liquid Oxygen/ Kerosene ever produced They are upgraded versions of the the NK15 and NK15B engines which flew on the first four flights of the N1 Soviet Moon Rocket They were designed to provide improved thrust, reliability and restart capability. The NK15 engine, originally developed for single use, was redesigned to increase component life and include reusable features for conducting acceptance and stage tests along with a cost effective qualification test program for the Nl and future vehicles1Major improvements on this new engine, the NK33, were seal upgrades, addition of a TEA preburner start system, and purge systems to allow multiple starts.

Disclaimer I must point out that I, Greg Bondar, make absolutely no claims of ownership or control to these images, or to the home pages of origin upon which they resideIt is only with the kind cooperation of the owners of those individual pages that these images are available at all. The Soviets tried and failed and went with a small (NK15) engine They needed the thrust so they clustered them The fuel lines at some point combine, and back pressure can cause vibrations in other feed pipes. Kuznetsov had little experience with rocket design, a fact that would become clear after he proposed the use of the small NK15 engine He proposed the N1 rocket’s first stage utilize a complex cluster of the small engines, a wildly complicated solution.

Other contributing (and possibly main) factor was that N1 used firstproduction engines (NK15) which were not adequately tested NK33 said to be an upgraded/matured version of NK15 Logged. The NK33 was the successor to the NK15 engines used in the failed Soviet N1 Moon launcher NK33 have been used with the Russian Proton launch system An interesting discussion of the Soviet Moon rocket, its engines and the NK33 successor can be found here, along with spectacular video of the launch and explosion. It was powered by 30 NK15 engines arranged in two rings the main ring of 24 at the outer edge of the booster and the core propulsion system of inner 6 engines The engines were the first ever staged combustion cycle engines The control system was primarily based on differential throttling of the engines of the outer ring for pitch and yaw.

NK15 is similar to these rocket engines NK33, RD180, RD270 and more Topic NK15 Share Rocket engines similar to or like NK15 Rocket engine designed and built in the late 1960s by the Kuznetsov Design Bureau. The USSR 30 NK15 engine design However, the N1 required four stages compared to the Saturn V’s threestage rocket, and the N1 booster stage could only burn for 125 seconds, while’s United States booster stage burned for 168 seconds The big difference was the size of payload that the Saturn V could deliver to the Moon. The NK15(GRAU index11D51) is a rocket enginedesigned and built in the late 1960s by the Kuznetsov Design Bureau The NK designation is derived from the initials of chief designer Nikolay Kuznetsov The NK15 was among the most powerful LOX/RP1rocket engines when it was built, with a high specific impulseand low structural mass.

Those 30 NK15 engines combined to create the mostpowerful rocket first stage ever developed, with an impressive 102 million lbf at liftoff Falcon Heavy’s 27 engines will produce a maximum of. The NK15 engine was designed and developed under the direction of Sergei Korolev Chief Designer for RKK Energiya (and following his death in 1966, by Vasily Mishin). The engine made for their moon rocket was called the NK15 The N1 launcher originally used thirty NK15 engines for its first stage After four consecutive launch failures and no successes, the project was cancelled.

The primary engines for the development rockets were Kuznetsov NK15 and Kuznetsov NK15V (later developed into Kuznetsov NK33 and Kuznetsov NK43) Nikolai Dmitriyevich Kuznetsov Wikipedia Kuznetsov later evolved that design into the NK15 and NK33 engines for the unsuccessful Lunar N1 rocket. The first launch of the N1 ended in a disaster killing several hundred people as can be seen below The N1 1st stage had 30 NK15 engines mounted around its circumference The engines did not fail, but the fuel pumping/transfer and injection systems did fail causing the explosion. The design was developed by Kuznetsov into the NK15 and NK33 engines in the 1960s, and claimed them to be the highestperformance rocket engines ever built, which were to propel the N1 lunar rocket —one that was never successfully launched.

The B (Blue Engine 3) is a LH2/LOX rocket engine developed by Blue Origin The engine began development in the early 10s, and completed acceptance testing in early 15 The engine is being used on the New Shepard suborbital rocket, for which test flights began in 15 The engine was under consideration by United Launch Alliance (ULA) for use in a new second stage, the Advanced. The NK33 engine is derived from the NK15 engine used on the Soviet Union's N1 rocket, a massive launcher designed to hurl manned lunar landers toward the moon It was Russia's answer to NASA's. NK15 engine NK15 / 11D51 rocket engine for first stage of N1 Credit © Mark Wade 48,814 bytes 346 x 537 pixels By March 1962, faced with Chelomei's favour with the military, Korolev made a detailed pitch for development of the NI in the military context.

The only major difference between the NK15 and 15V was the engine bell and various tunings for airstart and highaltitude performance The N1F Block B replaced the NK15 engines with upgraded NK43 engines Block B could withstand the shutdown of one pair of opposing engines (6/8 engines) Block V third stage. The engines NK15 were developed by the Kuznetsov Design Bureau The engines could not be gimballed to steer the vehicle Instead, the motors were selectively throttled to achieve the correct trajectory The 30 main engines (4 drive engines) have a thrust of 154 tons each and burning 150 seconds. The NK15 engine, originally developed for single use, was redesigned to increase component life and include reusable features for conducting acceptance and stage tests along with a cost effective qualification test program for the Nl and future vehicles1Major improvements on this new engine, the NK33, were seal upgrades, addition of a TEA preburner start system, and purge systems to allow multiple starts.

Note All other informations for NK15 and NK15V are obviously not correct For NK15/NK33 and NK15V/NK43 used mostly identical data That must be wrong because the old and the new engines are significantly different from each other (compare the images) Derivative. The NK15 (GRAU index 11D51) is a rocket engine designed and built in the late 1960s by the Kuznetsov Design Bureau The NK designation is derived from the initials of chief designer Nikolay Kuznetsov The NK15 was among the most powerful LOX / RP1 rocket engines when it was built, with a high specific impulse and low structural mass. NK15FKuznetsov LOx/Kerosene rocket engine Development Engine had only a very short nozzle, the 24 engines around the periphery were to expand along a common central plug on the first stage of a studied N1 variant NK35Kuznetsov LOx/LH2 rocket engine.

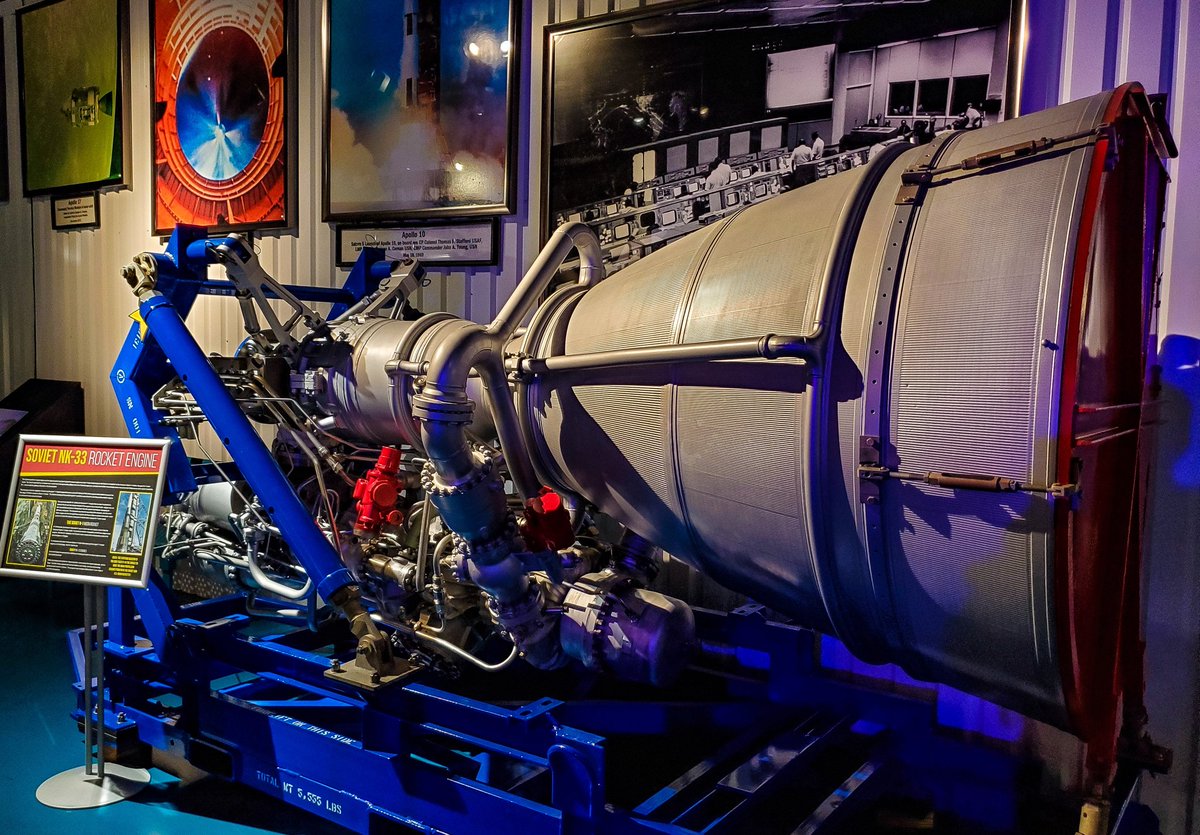

The N1/L3 had five stages (BLOKs) as well as the Lunar Orbital Ship (LOK) and the Lunar Ship (LK) BLOKA featured an outer ring of 24 NK15 engines with a central cluster of a further 6, giving the stage an extremely wide radius Huge spherical propellant tanks were used and a massive network of associated plumbing fed the 30 engines. Note All other informations for NK15 and NK15V are obviously not correct For NK15/NK33 and NK15V/NK43 used mostly identical data That must be wrong because the old and the new engines are significantly different from each other (compare the images) Derivative. Replica Engine this is a replica of the NK33 this was a flight ready version of the NK15 the first staged combustion engine ever it flew as the first stage engine on the N1 Thrust SL 1510kn Vac 1,685kn.

The real problem with the NK15 engines is that the actual flight engines could not be static tested Many valves were opened and closed with pyros instead of hydraulic or pneumatic power After a. The USSR 30 NK15 engine design However, the N1 required four stages compared to the Saturn V’s threestage rocket, and the N1 booster stage could only burn for 125 seconds, while’s United States booster stage burned for 168 seconds The big difference was the size of payload that the Saturn V could deliver to the Moon. By contrast, the NK15 engines from the Kuznetsov design bureau, which were used in the N1's first stage, could each generate only 154 tonnes of thrust The result was that 30 NK15s were needed to.

NK15 is similar to these rocket engines NK33, RD180, RD270 and more Topic NK15 Share Rocket engines similar to or like NK15 Rocket engine designed and built in the late 1960s by the Kuznetsov Design Bureau.
