Pre engaged starter motor diagram. Motor Starter Wiring Diagrams Print RSS Modified on 2151 by Mark Cruz Categorized as Electrical » Motor Starter Wiring may also be provided and may be used for auxiliary circuits or to provide feedback to the rest of the system that the starter is engaged and the motor has power. Diagram Single Post Starter Solenoid Wiring Full Version Hd Quality Thermostat Studiovdance Fr 4 post starter solenoid wiring diagram 6v full four pole fxe and relay 1957 ford 3 aircraft mins marine engine starting circuit the definitive guide 2 1961 single how to wire t x diagrams help you understand 12 volt hot side revival universal with position ignition switch m type motorcycle spitfire. My Mini currently has a Preengaged starter motor (the one with the solanoid on piggybacked on top of the starter motor) I have an early MG metro engine with a 107 teeth flywheel (inertia starter) I have the solanoid and starter now, but does anyone have a wiring diagram and where to connect to the solanoid?.

Motor Starter Wiring Diagrams Print RSS Modified on 2151 by Mark Cruz Categorized as Electrical » Motor Starter Wiring may also be provided and may be used for auxiliary circuits or to provide feedback to the rest of the system that the starter is engaged and the motor has power. A Bendix drive is a type of engagement mechanism used in starter motors of internal combustion enginesThe device allows the pinion gear of the starter motor to engage or disengage the ring gear (which is attached to the flywheel or flexplate of the engine) automatically when the starter is powered or when the engine fires, respectively It is named after its inventor, Vincent Hugo Bendix. 40 Ford Wiring Harnes February.

CF75 DMCI Motor Control Circuit Diagram B010 Motor, starter B131 Solenoid valve, pump unit, cyl 1 B132 Solenoid valve, pump unit, cyl 2 E118 Fuse, engine E184 Fuse, engine 92 Fuse, preheating (grid) E511 Switch, stop lights E593 Switch, neutral position E575 Switch, clutch. My Mk1 escort is wired for a pre engaged starter (was originally 1300 auto) Now I have a 4 speed manual and was given an inertia starter with it The inertia starter has 9 pinion teeth and meshes correctly with the flywheel Are there pre engaged starters to suit manual transmiss. The simplest preengaged type of drive is the overrunning clutch type In this drive, the pinion is pushed into mesh by a forked lever when the starter switch is operated, the lever often being operated by the plunger of a solenoid switch mounted on the motor casing.

Preengaged Vs Inertial Pinion Starter Bendix Drive The inertial pinion Bendix drive has both good and bad sides The solenoid type too Here is a comparison of the two versions of the device The preengaged drive uses an electric actuator to move the pinion That requires extra power (and drains the battery). 6 Switch Box Wiring Diagram;. 1999 Chevy Suburban 6 5l Engine Diagram Wiring Diagrams Supplemental Grounding Of Starter Diesel Bombers Chevy 3 4l Engine Diagram Diagram Data Pre V8 Engine Wikipedia 6 Wire Single Phase Motor Wiring Diagram;.

Connect the negative lead of the voltmeter to the live terminal of the battery, and the positive lead to the startermotor feed terminal (on a preengaged starter this is the solenoid feed terminal) It should read 12 volts, then when you work the starter switch drop to below 05 volts If it does not drop, first check the solenoid. The starter motor itself has a device, called a Bendix gear, which engages its pinion with the gear ring on the flywheel only while the starter is turning the engine It disengages as soon as the engine picks up speed, and there are two ways by which it does so the inertia system and the preengaged system The inertia starter relies on the. Preengaged Vs Inertial Pinion Starter Bendix Drive The inertial pinion Bendix drive has both good and bad sides The solenoid type too Here is a comparison of the two versions of the device The preengaged drive uses an electric actuator to move the pinion That requires extra power (and drains the battery).

This detailed video covers both Inertia (Bendix) style starters and PreEngaged starters The solenoids that engage these starters are covered as well as "Mo. Figure 7–1 A pup engine starter motor Figure 7–3 A starter assembly engaging with a flywheel ring gear Figure 7–2 A typical arrangement of a heavyduty electric starter on a diesel engine M07_HEAR3623_01_SE_C07indd 217 07/01/15 6 PM. John Deere Parts Diagrams, John Deere 5045D,5045E,5055D,5055E,5065E,5075E TRACTORS (NORTH AMERICAN EDITION) PC4501 1125 Rocker Arm Cover Engine 3029TPY21RE 30CR Starter Motor Engine 3029TPY45RE Metric 30CR Starter Motor Engine 3029TPY46RE Metric 30DG Starter Motor XXXXXX Engine 3029TPY44RE Metric.

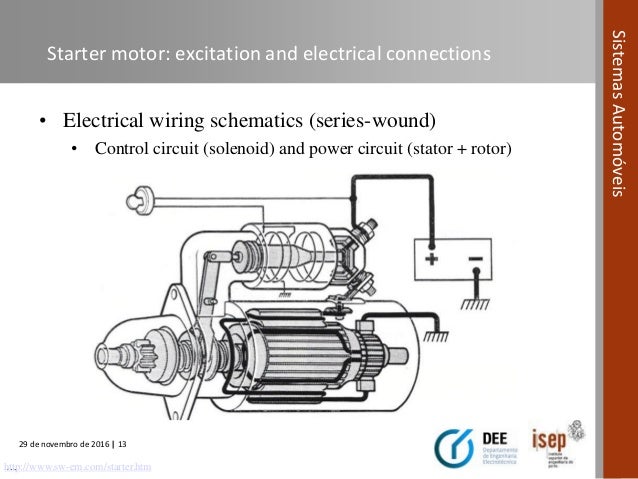

Inertia starter motor The teeth shoot along the shaft when it spins to engage with the flywheel Closeup of the burnt section Preengaged starter motor Very similar to above but the piggyback solenoid pulls the gear to mesh with the flywheel Exploded view of the solenoid & lever system Never a dull day!. In this article, we consider the firstgeneration Ford Transit Custom before a facelift, produced from 12 to April 16 Here you will find fuse box diagrams of Ford Transit Custom 12, 13, 14 and 15, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay. Preengaged Starter Solenoid The solenoid has two windings the pullin winding 'A' which is about 04 ohms, and the holdin winding 'B' which is about 12 ohm Not only does this connect 12v directly to the motor, so spinning it at full power to crank the engine, but it also effectively bypasses the solenoid pullin winding As this now.

On a non preengaged starter with a bendix, you can also jump the solenoid by connecting terminal "B" to terminal "M" This is useful when the solenoid is faulty – HandyHowie Feb 16 '16 at 2108. 3 Security starter relay controlled car starter wiring diagram To ensure that the starter can stall automatically and the starter circuit not connected after the engine starts, some cars adopt the compound relay circuit with safety driving protection The security starter relay controlled car starter wiring diagram is as shown in the. Problems With Pre Engaged Starter Motors A preengaged starter is easily recognized because it carries a solenoid housing upon its back (see below) This solenoid actuates a lever which pushes the drive pinion in to mesh with the flywheel ring gear It is not until this happens that the starter motor begins to turn Hence the name, preengaged.

The starter is an electric motor that, with the aid of the battery and the starter solenoid, turns the engine once the ignition is engaged If the starter motor is not signaled to activate by the starter solenoid if the solenoid does not switch on the starter motor the engine will not start. Dip beam flasher relay;. This video explains the working of a starter motor with relevant animations The starter motor model shown here is a preengaged type starter motor In this.

Wiper motor, two speed;. Pre Engaged Starter Motor Wiring Diagram from s3amazonawscom Print the electrical wiring diagram off in addition to use highlighters in order to trace the routine When you employ your finger or perhaps follow the circuit together with your eyes, it’s easy to mistrace the circuit. How your starter works Your starter is really an electric motor It engages when you turn the ignition to “run” and turns the engine over allowing it to suck in air On the engine, a flexplate or flywheel, with a ring gear around the edge, is attached to the end of the crankshaft.

(my car was converted from inertia to pre engaged so the wiring was non standard!) Hope this helps a little??. In the case of a preengaged starter there is a builtin solenoid that not only switches the motor once it is engaged but also has the job of mechanically moving the pinion gear into position changing from an Inertia Starter wiring system to a preengaged type involves removing the remote solenoid and rewiring the main battery and starter. It does specify in that the preengaged starter was added in 1985, so the diagrams from 1985 onwards are for the preengaged system The diagrams for that system will show a starter relay driving the solenoid because the preengaged solenoid draws more current than the remote type and the starter switch isn't up to it.

Preengaged Starter Solenoid The solenoid has two windings the pullin winding 'A' which is about 04 ohms, and the holdin winding 'B' which is about 12 ohm Not only does this connect 12v directly to the motor, so spinning it at full power to crank the engine, but it also effectively bypasses the solenoid pullin winding As this now. M Starting motor 35 35" diameter yoke 325 325" diameter yoke 418 4y diameter yoke 45 45" diameter yoke Suffix G Diecastcommutator end bracket or frame GI Diecastcommutator end bracket or frame, 4brushmachine L Long type machine M45G, preengaged. Dual brake test switch;.

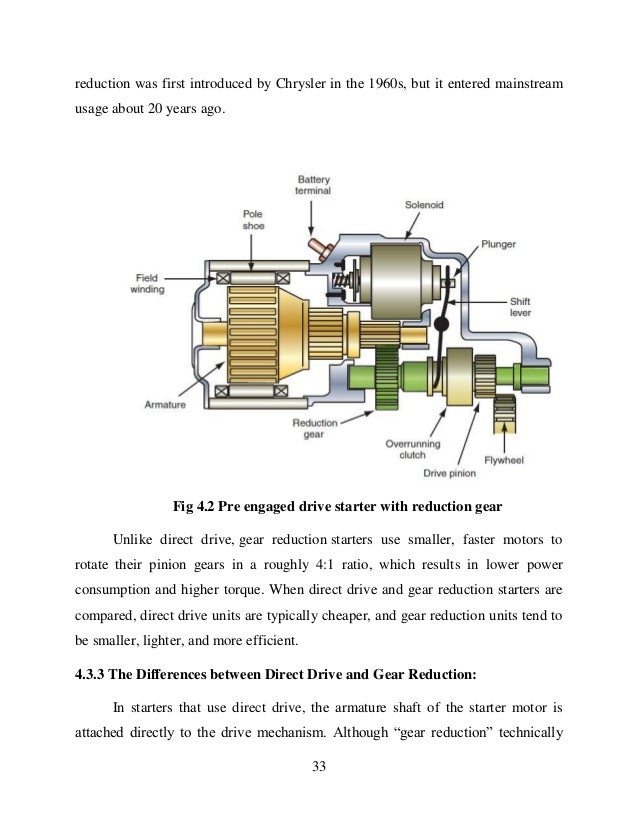

Starter motor components – engine starting system is a system that have a function to crank the engine for the first time The working principle of starter motor is to rotate the engine crankshaft via flywheel using electric motor circuit The result is a rotating crank and engine cycle can be triggered to work continuously. The ‘WOSP’ high torque starter is a brand new direct replacement to the original application It is based on a modern high torque gear reduction design which is preengaged, meaning it has a solenoid as part of the starter motor. PreEngaged Starter Motor Wiring (Terminal Id) posted in Problems, Questions and Technical Any help on this would be great Just converted from Inertia to preengaged starter motor Ive read all the forums / threads on how to use the solenoid as a marshalling point and I understand how it should be wired.

Dual brake warning indicator;. They are wellsuited to smaller engines and engine bays where space is a major consideration;. Assortment of motor starter wiring diagram pdf A wiring diagram is a streamlined standard pictorial representation of an electric circuit It shows the elements of the circuit as streamlined shapes, and the power and signal links in between the tools.

LUCAS STARTER MOTORS Model M35G (Inboard type) MODEL M45G (PRE ENGAGED TYPE) MODEL M45G (SELF INDEX TYPE) The table below is intended to assist you in identifying which vehicles use which starter motors All to often people look at the model number, this does not denote much more than the physical size, the part number is far more. Starter motor and alternator 2 60A Passenger junction box power supply start relevant / Passenger junction box KL15 for StartStop 3 100A Engine junction box power supply nonstart relevant 4 40A Heated front screen righthand side 5 100A Standard relay box power supply nonstart relevant 6 40A. 3 Security starter relay controlled car starter wiring diagram To ensure that the starter can stall automatically and the starter circuit not connected after the engine starts, some cars adopt the compound relay circuit with safety driving protection The security starter relay controlled car starter wiring diagram is as shown in the.

57 Chevy Starter Wiring Diagram Wiring Diagram Im pretty sure this is a 57 chevy starter i found it out in the desert near my house been a while since i looked at it and its kind of hard to get to at night with the spiders and stuff. Oh and i belive the starter is earthed from where it bolts on through the engine. Axial (Sliding Armature) Starter Motor The main features of this type starter motor are its size and robust construction For the engagement of the pinion to the flywheel ring gear, the complete armature assembly slides axially through the motor casing A simplified construction of the starter is illustrated in Fig 1527.

The pinion on a preengaged starter motor fully engages with the ringgear before rotating at highspeed Unlike inertia starter motors, there is no collision between a rapidly rotating pinion and a stationary ringgear The preengaged starter motor is fitted with a relay valve which controls the movement of the pinion When the starter motor is activated the pinion moves along the shaft. Later model MGB (1968 and later) use the preengaged starter motor Here the main battery cable is connected directly to the starter motor As a matter of convenience, the same large terminal post on the starter is used for connection of a number of Brown wires which are always hot, handling all of the power in the car other than the starter. Remote relay option to reduce the space envelope even more, if starter orientation isn’t an.

Pre engaged should always be prefered over the inertia, more so on a high compression engine The pre engaged starter is easily retrofitted into a car with inertia starter wiring All wiring is identical except for adding a short 4mm wire that loops from the battery connection on the starter itself, to the starter solenoid posative terminal. Inertia starters have several features that make them more suitable than preengaged starters for some applications Size inertia starter motors benefit from being smaller than preengaged equivalents;. A starter motor is used to rotate an engine to begin the combustion process A flex plate or flywheel is connected (bolted) to the rear of the crankshaft, these unit are fitted with a ring gear which enables the starter to be activated If the flywheel is worn it can cause a grinding noise when the starter is operated.
