GateOn Supply VON is the positive supply voltage for the CKV_, CKVB_, and STVP highvoltage driver outputs This VGH (VGate High) voltage was generated by DCDC circuits And their voltage is about V ~30V but it will depends on the Tcon board design The feature of VGH voltage is to supply to the Gate Driver Board as a “Switch ON” feature.

T con board voltage pdf. 7) Shop Notes TV had other mainboard voltage problems and customer canceled repair service ===== 1) TV Model Number KDL46W5810 2) TV Failure Symptom TV turns fully on, then immediate shutdown into protect mode 3) Faulty Board TCon 4) Faulty Board Number LJH 5) Board Location Number Of Faulty Part(s) ICF4 6) Parts Failure Type. Checking all the Main board LDO and DCDC circuits, their voltage outputs are normal and stable For more details on how to troubleshoot the TV Main board, please refer to V40 LCD LED TV Repair Tips ebook When the screen problem appears, checking the. The TCON Voltage Source will always be provided from the Main board However, the Main board does not actually generate the TCON source voltage All the Main board does is switch on and off the voltage coming from the Power Supply The Power Supply generates a 12V supply that is sent to the Main board.

It is called so because it output voltage much much higher than its input voltage and can easily take in 30 to 50vdc and put out some thing in the range of 100 to 170vdc to drive a very large string of leds. Most likely the Tcon board BNA (V315B1) is creating the problem It cost around US$60 including postage which is on the high side considering the age of this model Changing the Tcon board can be a very fast & easy repair job but it is not cost effective or may not worthwhile to repair it. The receiver detects the polarity of the voltage drop across the resistor to determine the logic level The current level swings in the wire are about 3ma with a voltage differential of around 350mv This allows for transmission of the video signal with minimal EMI The LVDS receiver on the TCON board converts the serialized data back to parallel.

00 TCON BOARD samsung Abstract sharp lcd tcon samsung tcon TCON SAMSUNG LCD diagram Sharp TCON LCD architecture Samsung KS066 lcd tcon tcon with lvds input samsung LCD TCON Text (HSYNC,VSYNC, DE) from a Graphics controller into a TTL signal to the on board TCON The TCON then , m able R egisters T E S T50 F P D PI Figure 1. That’s mean their Tcon board and LCD Panel is ok So the problem was in their Main board!. The receiver detects the polarity of the voltage drop across the resistor to determine the logic level The current level swings in the wire are about 3ma with a voltage differential of around 350mv This allows for transmission of the video signal with minimal EMI The LVDS receiver on the TCON board converts the serialized data back to parallel.

Distances between the electrodes;. Complete high voltage power solutions in on board chargers and charging stations Introduction Devices Reference Designs • Part numbers mentioned • UCCQ1, UCC251Q1, LMQ1 • UCCQ1, UCCQ1, UCC280xQ1, UCC28C4xQ1, LM5021Q1 • UCC271AQ1, UCC215Q1. Detects the polarity of the voltage drop across the resistor to determine the logic level The current level swings in the wire are about 3ma with a voltage differential of around 350mv This allows for transmission of the video signal with minimal EMI The LVDS receiver on the TCON board converts the serialized data back to parallel.

The TCON Voltage Source will always be provided from the Main board However, the Main board does not actually generate the TCON source voltage All the Main board does is switch on and off the voltage coming from the Power Supply The Power Supply generates a 12V supply that is sent to the Main board. DIAGNOSING A FAILED T'CON BOARD All video inputs received by the video process circuits are handled on a framebyframe basis The video frames are converted and scaled to 8 to 10 bit RGB information It is virtually impossible for the video process circuit to cause a problem on a specific area of the screen. LED TV Tcon board Lecture 1 CHIPTRONIKS ©VD INTELLISYS TECHNOLOGIES PVT LTD,126 Kingsway Camp,Delhi TCON Details 1 TCON definition and working principle Driven PANEL PANEL itself needs to meet a variety of timing, we put this part of the work in a circuit called TCON (Timing Controller).

Jul 6, 19 Pak Technicans is All about Electronics You can learn to repair LCD/LED TVs, Laptop/Computer, Smart Phones, Satellite Receiver and more. The Power Supply voltage outputs are all normal This TV backlight is lit and the sound is OK The Tcon board Vcc voltage 12V was present That’s mean their backlight system, PSU board and Main board are all OK. 7) Shop Notes TV had other mainboard voltage problems and customer canceled repair service ===== 1) TV Model Number KDL46W5810 2) TV Failure Symptom TV turns fully on, then immediate shutdown into protect mode 3) Faulty Board TCon 4) Faulty Board Number LJH 5) Board Location Number Of Faulty Part(s) ICF4 6) Parts Failure Type.

Actually generate the TCON source voltage All the Main board does is switch on and off the voltage coming fthP Slfrom the Power Supply The Power Supply generates a 12V supply that is sent to the Main board When it is time to turn on the TCON, the Microprocessor will send out a command that turns on the TCON 12V and this voltage is routed. You cant "test" the TCON board if it has a faulty component on it has to be determined by swopping the board, their is no test procedure which is why I am asking questions to the fault, if by swopping the board the fault clears then you know the board is indeed faulty or not, flat tv technology in the main is a board swopping exercise with no checks or tests other then using the menu as a. Input Voltage Range 95 40 95 40 V Output Voltage Range 37 37 V InputOutputVoltage Differential 30 38 30 38 V θJA PDIP 105 °C/W θJA CDIP 150 °C/W θJA H10C Board Mount in Still Air 165 165 °C/W θJA H10C Board Mount in 400 LF/Min Air Flow 66 66 °C/W θJC 22 22 °C/W.

And voltage drop =. Voltage Drop 5 Answer First, calculate the total voltage drop allowed in the circuit This is done by (240 volts x 2%) or 48 Voltage Drop Then use the singlephase formula for circular mils where K = 129 ohmscmil/ft for copper;. TCON board full explain in detail Tcon board full informationAbout this VideoIn this video I'm telling about LCD Lev TV's tcon board That is how to work.

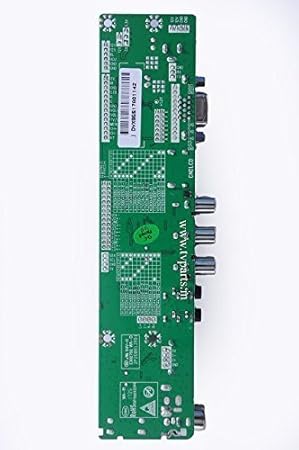

In the Turn On sequence, Panel_CTL turns on the 12V to the TCON Once you have confirmed that the Main board is receiving the correct voltages, you need to confirm that the TCON is receiving its operational voltage The best way to check is to begin with the LVDS cable from the Main to the TCON It will have a test point for the 12V to the T. LED TV Tcon board Lecture 1 CHIPTRONIKS ©VD INTELLISYS TECHNOLOGIES PVT LTD,126 Kingsway Camp,Delhi TCON Details 1 TCON definition and working principle Driven PANEL PANEL itself needs to meet a variety of timing, we put this part of the work in a circuit called TCON (Timing Controller). This is a single RAR In this RAR file, we have added 0 LCD/LED TCON and Scaller Board Voltage Diagrams and DatasheetsNow you don’t need to download all these datasheets one by one, just click on the download button and get all the files in one.

Input logic high voltage VIH 07VCC VCC V Input logic low voltage VIL 0 03VCC V Note 4 LED life time 000 Hr Note 5 Note 1 VCC setting should match the signals output voltage (refer to Note 4) of customer’s system board Note 2 LED driving voltage Note 3 LED driving current Note 4 DCLK,DE, HS, VS, R0~ R5,,G0~ G5,B0~ B5. Title File Size Download Links PANASONIC 13R18B chTMC573 Service Manualpdf 15Mb Download PANASONIC 14 TC2195 TC21V80 TC21G10 chassis MX5 LR3 Circuit Diagram pdfpdf 12Mb Download PANASONIC 14LR3 Circuit Diagram pdfrar 3045kb Download PANASONIC ch,LA14 TC32LX34 Service Manualpdf 121Mb Download PANASONIC CH GP21 Circuit Diagram pdfrar 51Mb Download PANASONIC ch KM21 Circuit. Hi, Guys, This is another post by Anees Imran Technicians, This post will give you a PDF on Advanced LCD/LED TCON Board Repairing This is LG TCON Board Testing Points & Voltages Details, This is the best PDF If you want to know about the testing points of TCON Boards of LCD/LED TVsPlease share it with your friends on Telegram, Facebook and Whatsapp Groups.

Tcon Board Repairing Types of TCon Board There are lots of different type of Tcon board available in the market But all the Tcon boards have the same working process with different designs and with different categories Some of Tcon board design explains in the below Only the TCon board This board used mostly branded television like Sony. Initial testing of basic components and DC supply voltage were found to be good My guess was that one of the main Tcon board ICs could have problem The problem now is that my customer need this TV back urgently and I got no choice other than to buy a new Tcon board from Ebay and fixed itsee the photo below. Tcon Board & Mainboard Current discharge from a high voltage potential to ground or to low voltage potential Arcing can occur when foreign particles as small as 2mm are present in the CRT gun Factors for arcing are voltage potential differences between the electrodes;.

The voltage that serves as the standard value for an input signal voltage Operating voltage The permissible voltage range within which an input signal voltage may fluctuate Must Operate Voltage The minimum input voltage when the output status changes from OFF to ON Must Release Voltage The maximum input voltage when the output status changes. High level input voltage VIH 07VDD —VDD V at SDA and SCL pins Low level input voltage VIL — — 03VDD V at SDA and SCL pins Low level output voltage VOL —— 04 VIOL = 3 mA Hysteresis of Schmidt Trigger for inputs (Note 7) VHYST 005VDD —— VfSCL = 100 kHz Supply Current when I2C bus line is active IDDB — — 10 µA Device is in. Title File Size Download Link Sharp 13NM100 chSN010 Service Manual pdf 25Mb Download Sharp 1421 D1S 1421D2S/ G chassis/ GA1AM Service Manual pdf 45Mb Download Sharp 14GT15/ chassis UA1 Service Manual pdf 34Mb Download Sharp LS100S/ CLS10/ 21ML50 chSN80 Service Manual pdf 45Mb Download Sharp 21J1RU/ 21JF2 Service Manual pdf 9Mb Download Sharp 21JF2RU Service Manual.

Distribution substation A distribution substation transfers power from the transmission system to the distribution system of an area The input for a distribution substation is typically at least two transmission or subtransmission lines Distribution voltages are typically medium voltage, between 24 and 33 kV depending on the size of the area served and the practices of the local utility. A feedback voltage obtained from voltage divider R 1 and R 2 is applied to the opamp’s noninverting input and compared to the Zener voltage to control the drive current to the transistor The current through resistor R S is thus controlled to drop a voltage across R S so that the output voltage is maintained. 5 index ABB Low Voltage Contractor 0312 1 ABB is a founder member of Voltimum which was launched in 03 Voltimum is an internet portal for the electrical industry and is active in 6 countries within Europe.

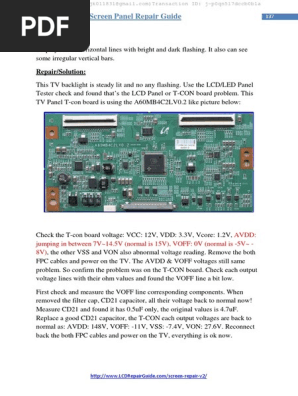

Mar 21, 19 V2LCD/LED TV Monitor Flat Screen Panel Repair Guide Learn how to troubleshooting & repairing the LCD/LED TV and LCD/LED Monitor Screen (some repairer will call it as Panel) Most of the screen panel repair tips were on hand repair without the TAB Bonding Machine For example the Samsung flat screen problem like Double Images, ghosting picture, screen jittering or jumping and etc. Logic board supplies 5 or 12vdc to TCON board B pin through switched transistor if TCON board does not get the voltage from the logic board, you will get a white/gray glowing screen without pictures Backlights Dimming (PWM) control signal 3) Back lights Inverter board Its job is to provide the drive voltage for the CCFL (Cold Cathode. L = 500 ft;.
